| Место происхождения: | КИТАЙ |
|---|---|
| Фирменное наименование: | SAFEGAS |
| Сертификация: | ATEX/EMC/IECEX |
| Номер модели: | Micmeta |
| Количество мин заказа: | 1 |
| Цена: | обсуждаемый |
| Упаковывая детали: | Картон (22*16*11 см) |
| Время доставки: | 3 рабочих дня |
| Условия оплаты: | Т/Т |
| Поставка способности: | 3000 штук в месяц |
| Рабочие часы: | Время ожидания 24 часа, время зарядки < 6 часов | Рабочий метод: | Диффузия |
|---|---|---|---|
| Сертификация (регламенты ЕС): | 2004/34/ЕС (ATEX) | Платформа калибровки: | Операции по модификации, функциональному тестированию и калибровке могут выполняться на док-станции |
| Беспроводная передача: | Функция передачи Bluetooth (необязательно), функция передачи Lora (необязательно) | Resolusion: | 1% НПВ 1 ч/мл 0,1 ч/мл 0,1 % ОБЪЕМА |
| Диапазон: | 0–100 % НПВ CO 0–1000 ч./млн H2S 0–100 ч./млн O2 0–30 % об. | Батарея: | 3.7V перезаряжаемая литийная батарея, емкость батареи 2300mA |
| Время ответа (T90): | ≤30s | Степень защиты: | IP66/IP68 |
| Автоматическое испытание и калибровка после включения: | Включая автоматическое испытание, калибровку, автоматическую нулевую величину, максимальное значение | Газ обнаружен: | НПВ CO H2S O2 |
| Масса: | 240 г (с литийным аккумулятором) | Запись данных: | 1000 наборов данных и 100 наборов записей событий |
| Выделить: | ATEX portable gas detector,coal mine toxic gas alarm,combustible gas safety monitor |
||

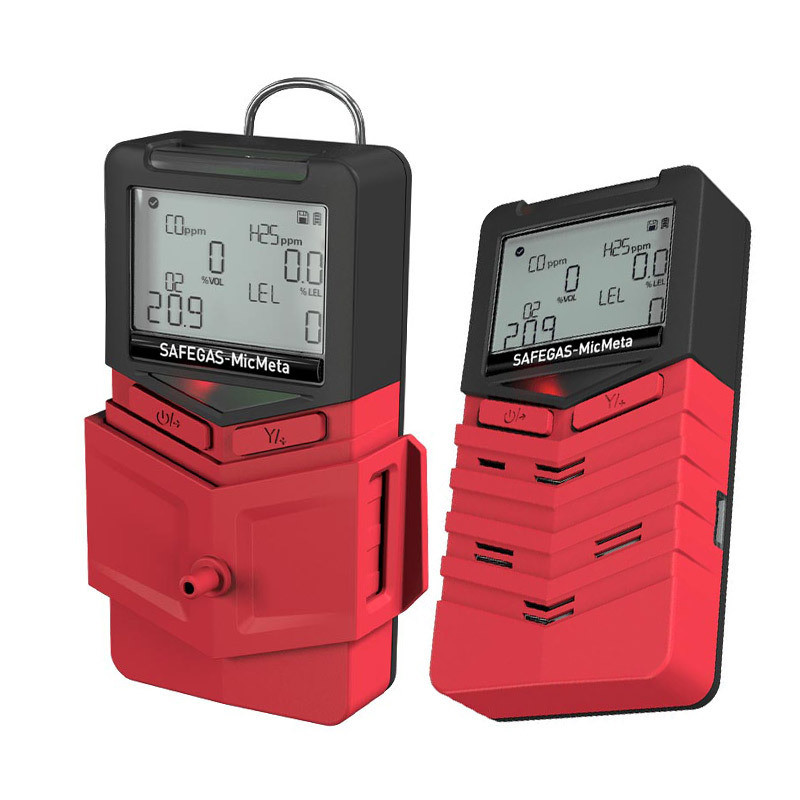

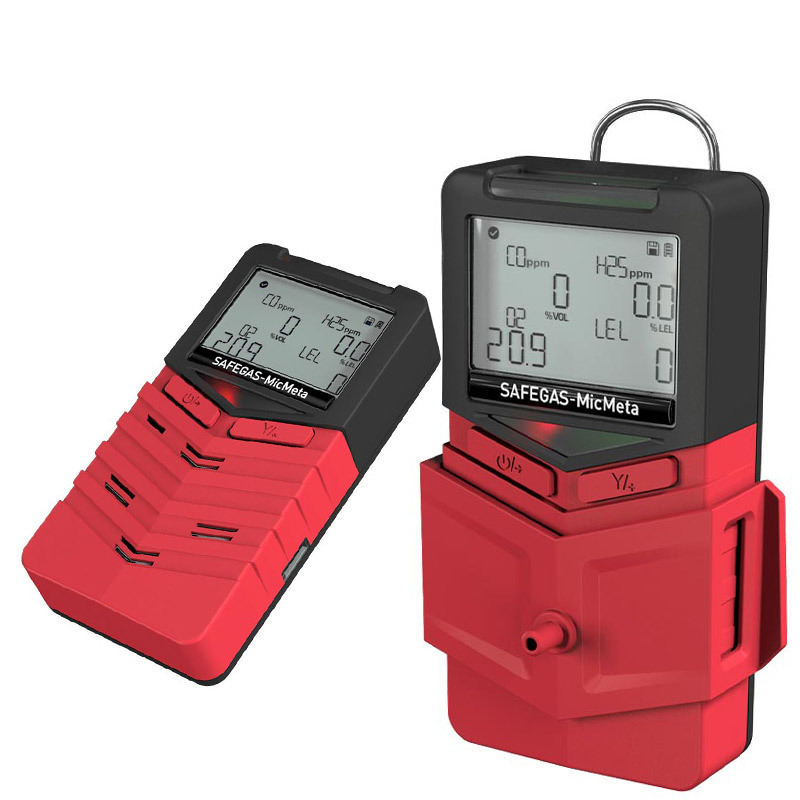

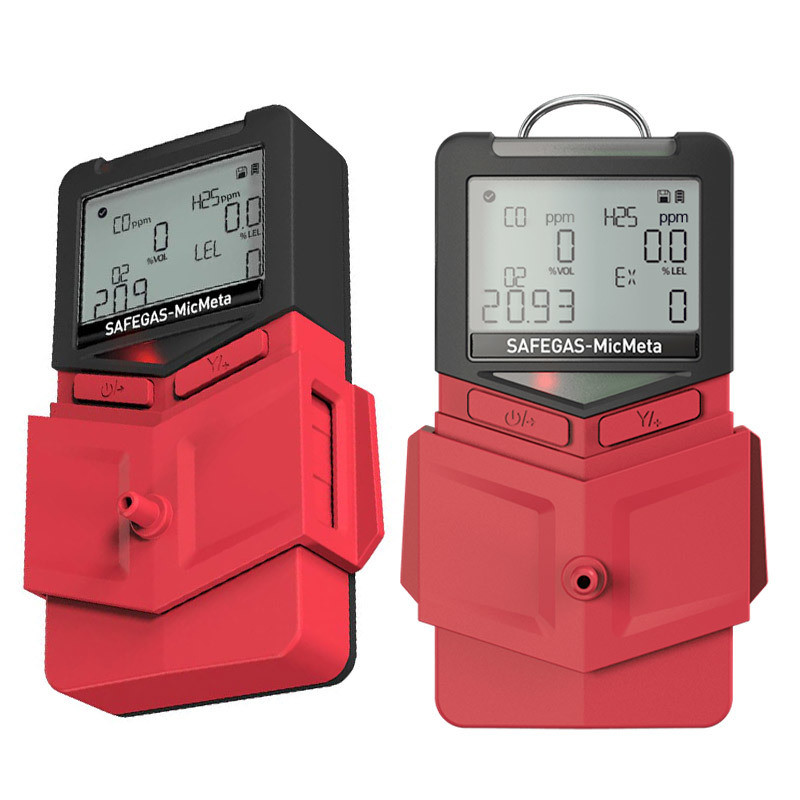

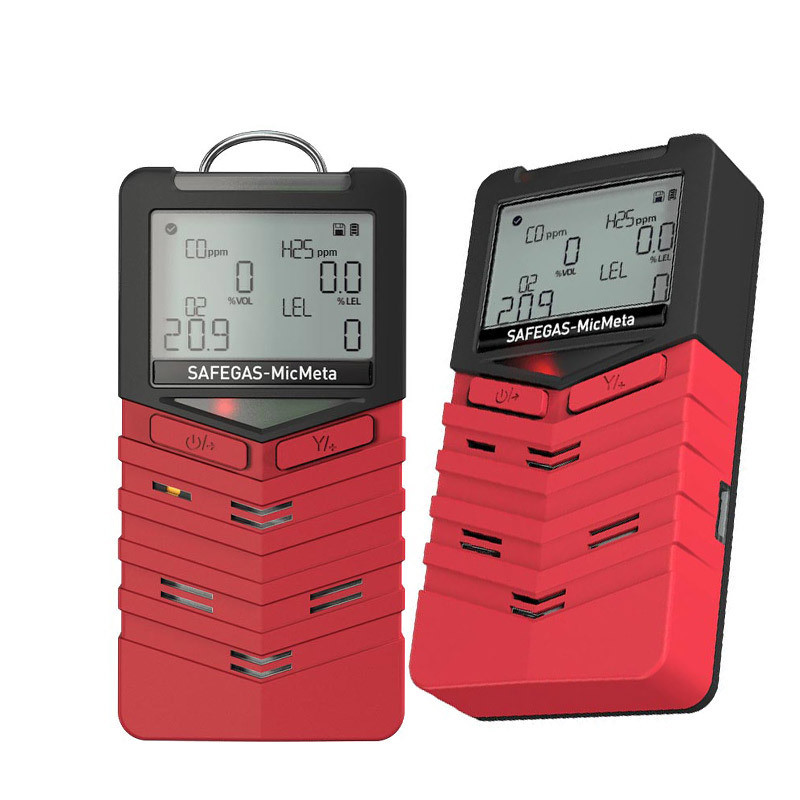

Portable multi model LEL CO H2S O2 gas detector with bump test and calibration
MicMeta is a multi-gas detector that has been certified by IECEx, ATEX, and EMC. It's lightweight and compact with standard gas types including multi 4 (CO H2S O2 LEL) gases and support for hundreds of selectable gases. Features include standard man-down alarm and data logging function, with optional Lora and Bluetooth wireless data transmission for easy data access.
| Parameter | Specification |
|---|---|
| Sampling method | Diffusion |
| Gas type | LEL CO H2S O2 |
| Measure range | 0-100%LEL CO 0-1000PPM H2S 0-100PPM O2 0-30%VOL |
| Resolution | 1%LEL 1PPM 0.1PPM 0.1%VOL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor) |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86~106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and system for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of "customer-oriented", and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas's products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
