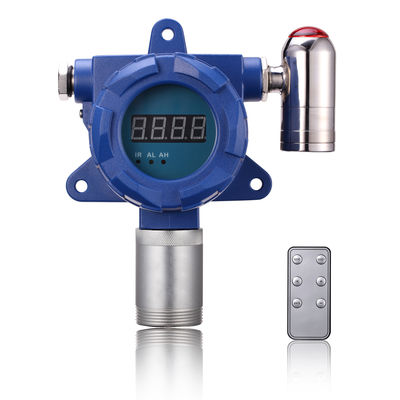

Durable Die-cast Aluminum Ozone Gas Detector for Industrial Online Monitoring

Durable Die-cast Aluminum Ozone Gas Detector for Industrial Online Monitoring

YT-95H is a cost-effective fixed gas transmitter specially designed for ozone (O3) detection. It integrates 3-wire 4-20mA analog, RS485 Modbus, and relay output, compatible with most industrial control systems. With optional sound-light alarm, infrared remote control, and wireless transmission (Lora/4G), it realizes 24-hour online monitoring and remote management for industrial hazardous gas sites.

YT-95H series fixed gas detector provides stable and reliable online detection for ozone (O3) and other toxic/combustible gases. It adopts standard industrial detection principles and supports high/low alarm with adjustable points. The detector features die-cast aluminum housing, IP65 protection, and explosion-proof grade Ex d IIC T6 Gb, suitable for long-term use in harsh industrial environments.

Equipped with infrared remote controller, users can set alarm points, calibrate zero, and modify addresses without opening the cover. Multiple signal outputs ensure wide compatibility with DCS, PLC, gas control panels and other systems. Relay output can directly drive external alarms, fans, and other equipment for linkage control. Optional Lora/4G wireless function supports remote real time data viewing on mobile phones and PCs.

• 24-hour online monitoring Real-time data display, continuous detection, high/low alarm with adjustable points.

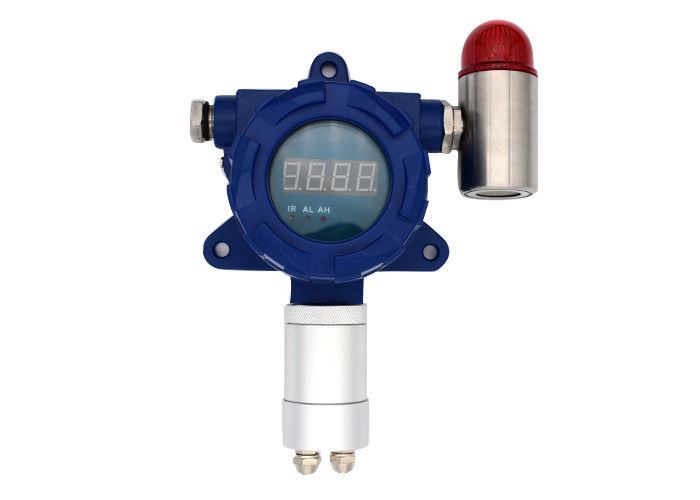

• Optional sound-light alarm Audible alarm >90dB, clear warning in noisy industrial environments.
• Infrared remote control One-key setting of alarm points, zero calibration, and address modification without disassembly.
• Triple signal output Integrates 4-20mA analog, RS485 Modbus, and relay output for strong compatibility.
• Relay linkage control Directly drive external horns, warning lights, exhaust fans, and other equipment.

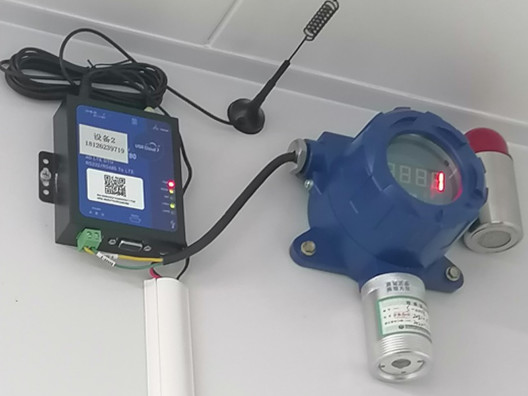

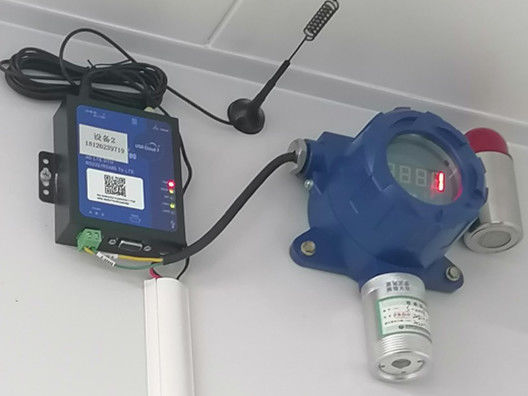

• Optional wireless transmission Support Lora / 4G for remote data monitoring on mobile phones and laptops.
• PC software remote monitoring Real-time data upload, recording, and historical data management.
• Industrial-grade rugged design Die-cast aluminum housing, IP65 waterproof and dustproof, explosion-proof Ex d IIC T6 Gb.
• Stable and low drift High repeatability, low zero drift, long-term stable operation.

The YT-95H fixed gas detector is ideal for continuous monitoring of ozone (O3) and other gases in the following environments:

1. Water & Wastewater Treatment

Ozone is widely used for disinfection and oxidation. Monitor O3 levels in treatment rooms, generator areas, and contact chambers to prevent worker exposure and equipment corrosion.

2. Food & Beverage Processing

Ozone is used for surface sanitation, bottle rinsing, and cold storage deodorization. Fixed detectors ensure safe levels in filling rooms, packaging lines, and cold rooms.

3. Chemical & Pharmaceutical Manufacturing

Ozone as an oxidizer or reaction agent. Monitor leaks in production areas, storage rooms, and around ozone generators.

4. Semiconductor & Electronics Industry

Ozone used for wafer cleaning and surface treatment. Install detectors in cleanrooms and tool exhaust lines.

5. Pulp & Paper Bleaching

Ozone replaces chlorine for bleaching. Monitor in bleaching towers, storage tanks, and ventilation ducts.

6. Indoor Air Quality (IAQ) in Commercial Buildings

Ozone generators used for odor control. Ensure levels stay within safe limits in HVAC systems, parking garages, and industrial kitchens.

Shenzhen YuanTe Technology Co., Ltd. (brand: Safegas) was established in 2010 and specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems. With over 16 years of industry expertise, the company serves sectors including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, and home appliances. Their product portfolio includes portable gas detectors, fixed gas transmitters, control panels, and calibration accessories. All products are manufactured under ISO9001 and ISO45001 management systems, ensuring consistent quality and safety. The company holds international certifications such as IECEx, ATEX, and EMC, and has an annual production capacity of over 80,000 units. With a global distribution network and 24/7 customer support, YuanTe Technology is a trusted partner for industrial gas detection solutions worldwide.

International certifications – Ex d IIC T6 Gb explosion-proof, IP65 ingress protection, compliant with global industrial standards.

Cost-effective fixed gas detection – Combines analog, digital, and relay outputs in one unit – reduces system integration costs.

Infrared remote control – No need to open the enclosure for calibration or setpoint changes; safer and faster.

Wireless ready – Optional LoRa/4G for remote monitoring in hard-to-wire locations.

Wide gas range – Supports hundreds of gases (LEL, O2, toxic, VOC) with interchangeable sensor principles (electrochemical, catalytic, IR, PID).

Fast response – T90 ≤20 seconds for most sensors.

Durable construction – Die-cast aluminum + 316 stainless steel sensor housing for corrosive environments.
