Главная страница > Продукция> Multi детектор газа> Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission
Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission
Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission
Основная информация
Место происхождения: Китай
Фирменное наименование: SAFEGAS
Сертификация: ATEX/EMC/IECEX
Номер модели: Micmeta
Количество мин заказа: 1
Цена: обсуждаемый
Упаковывая детали: Картон (22*16*11 см)
Время доставки: 3 рабочих дня
Условия оплаты: Т/Т
Поставка способности: 3000 штук в месяц
Лучшая цена Контакт
Подробная информация
Рабочий метод: Диффузия Время ответа (T90): ≤30s
Запись данных: 1000 наборов данных и 100 наборов записей событий Батарея: 3.7V перезаряжаемая литийная батарея, емкость батареи 2300mA
Беспроводная передача: Функция передачи Bluetooth (необязательно), функция передачи Lora (необязательно) Рабочие часы: Время ожидания 24 часа, время зарядки < 6 часов
Сертификация: ATEX/IECEx/EMC Степень защиты: IP66/IP68
масса: 240 г (с литийным аккумулятором)

Характер продукции

Portable Multi Gas Detector Fast Response 4 in 1 Detector O2 H2S CO LEL Data Logging
Product Overview

MicMeta is a multi-gas detector certified by IECEx, ATEX, and EMC. This lightweight, compact device features standard detection for CO, H2S, O2, and LEL gases, with support for hundreds of selectable gases. Includes standard man-down alarm and data logging functions, with optional Lora and Bluetooth wireless data transmission for easy data access.

Product Specifications
Sampling method Diffusion
Gas type H2S LEL O2 CO
Measure range Customized
Resolution Customized
Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on specific sensor)
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, with automatic concentration value conversion
Display Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars with alarm status indication on screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade CNEX:Ex ia IIC T4 Ga
EU regulations 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86~106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)
Product Images

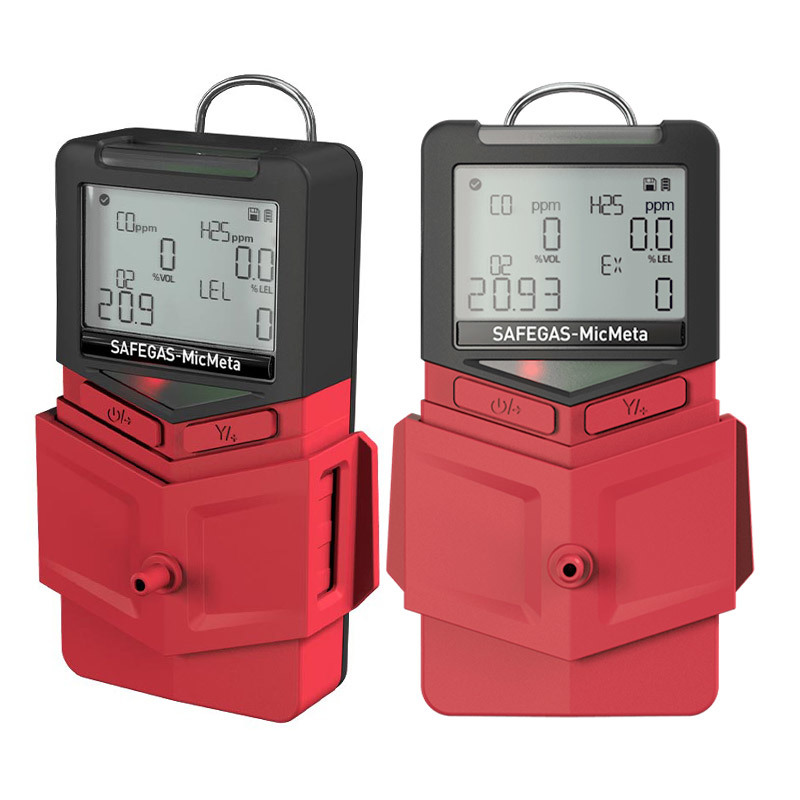

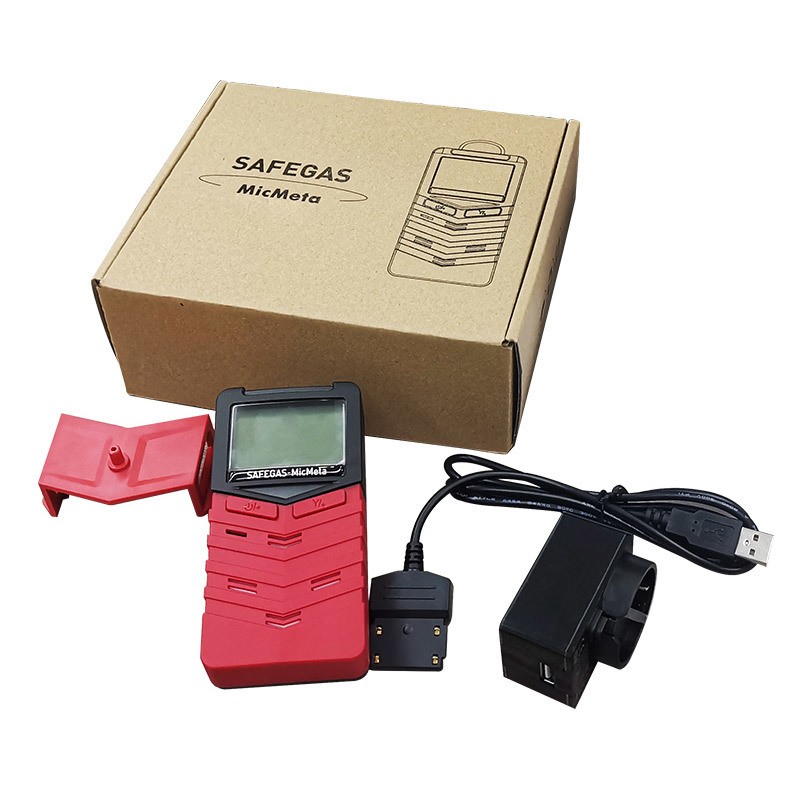

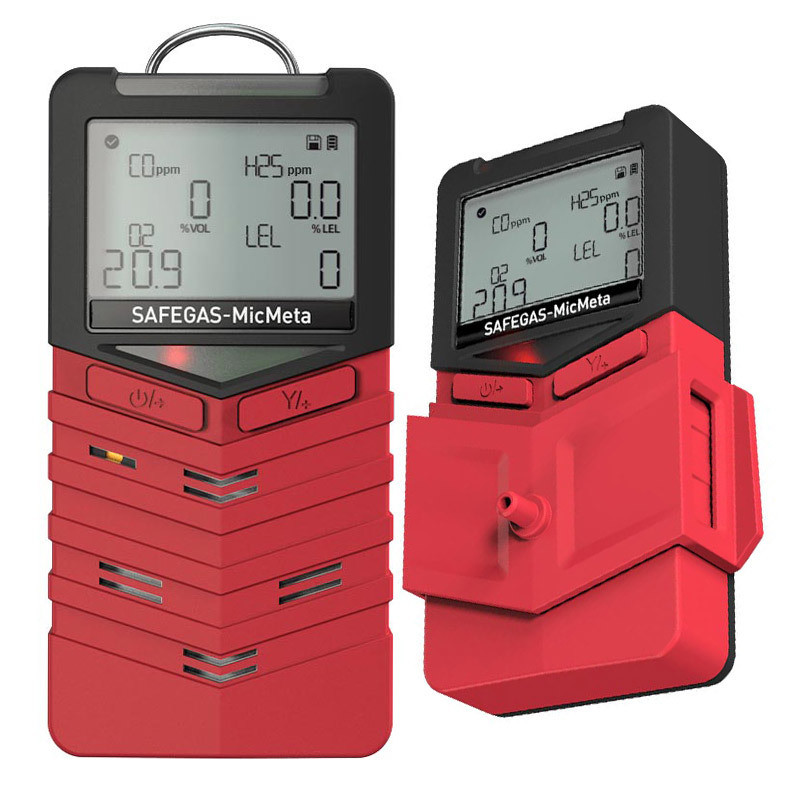

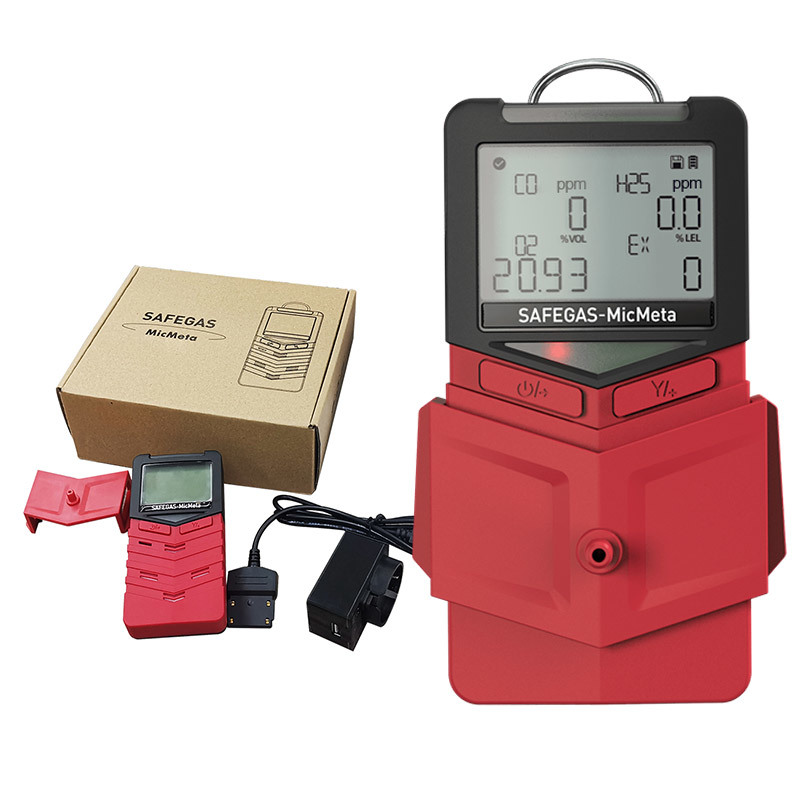

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission 0 Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission 1
Product Advantages
  • IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
  • Compact, lightweight, small size with back clip, ergonomic and wearable design
  • Standard man down alarm, password protection, ID identification function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • With self-test function, which can improve safety by automatic self-test
  • Standard 1000 data records and 100 events records
  • Support firmware upgrade remotely
  • With docking station to perform daily bump test and calibration (Optional)
  • Wireless data transmission including Lora, Bluetooth (Optional)
  • Low power consumption, battery run time is upto 24 hours per charge
Company Information

Safegas is a company that focuses on the design, production and sales of environmental monitoring equipment and systems for 16 years. With "gas detector" as the core product, we have complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission 2

For years, Safegas has maintained the management concept "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." With friendly, open, and strict corporate culture and standardized management, Safegas has gathered talented professionals and built strong management and R&D teams.

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission 3

Through years of measurement experience and Safegas solutions, combined with independent research, cooperative development, and learning overseas latest technology, Safegas products are domestically advanced and can compete with international brands. We continuously seek development and progress to meet diversified customer demands.

Portable Multi Gas Detector with Fast Response ≤30S IP66/IP68 Waterproof and Bluetooth Lora Wireless Transmission 4
