Product Name
SKY3000 Portable Pumping Gas Detector
Product Overview
SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.
Product Advantage
- IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
- Standard man down alarm function
- Real time value, TWA, STEL, MAX, MIN multiple numerical display
- One press to restore factory settings.
- Large graphical display can rotate 180°
- Standard water trap filter to protect the sensor

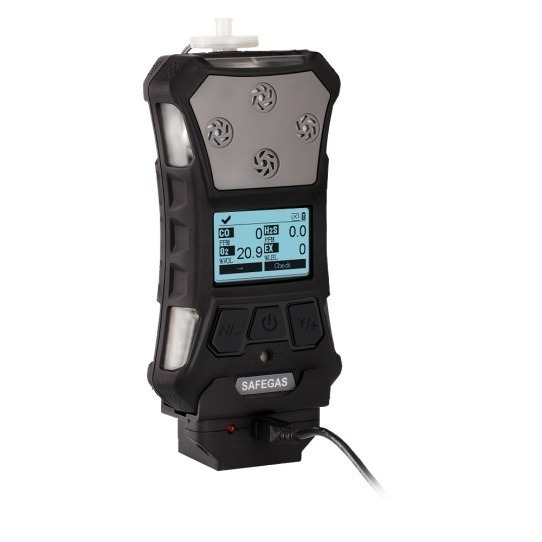

- With docking station to perform daily bump test and calibration (Optional)
- Wireless data transmission including Lora, Bluetooth (Optional)
- Support backlight function the backlight time can be manually set
- Low power consumption, long stand by time
- Support firmware upgrade remotely
Technical parameters
- Gas Detected
- To be specified
- Detection Principle
- To be specified
- Measure range
- Specified according to application.
- Resolution
- Specified according to application.
- Response time
- ≤20 seconds
- Precision
- ≤±1-5%F.S except for special gases
- Language
- Chinese/English/Russian/Polish (More language can be customized)
- Automatically test and calibrate after power-on
- Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
- Unit
- PPM, mg/m³, %LEL, %VOL
- Display
- LCD (160 x 96), 180° rotate
- Backlight
- Turned on automatically when alarming, the backlight time can be manually set
- Data record
- 100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
- Alarm
- 95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
- Battery
- 3.7V rechargeable lithium battery, battery capacity 2200mA
- Working hours
- More than 15 hours in continuous pumping mode
- Charger
- Travel charger with DC interface, charging time ≥ 4 hours
- Working temperature
- -20℃~+50℃
- Explosion-proof grade
- IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
- Humidity
- 10~90%RH (no condensation)
- Certification (EU regulations)
- 2004/34/UE (ATEX)
- Protection grade
- IP67
- Environmental pressure
- 86~106Kpa
- Size
- 157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
- Weight
- 365g (including battery, belt clip and filter)

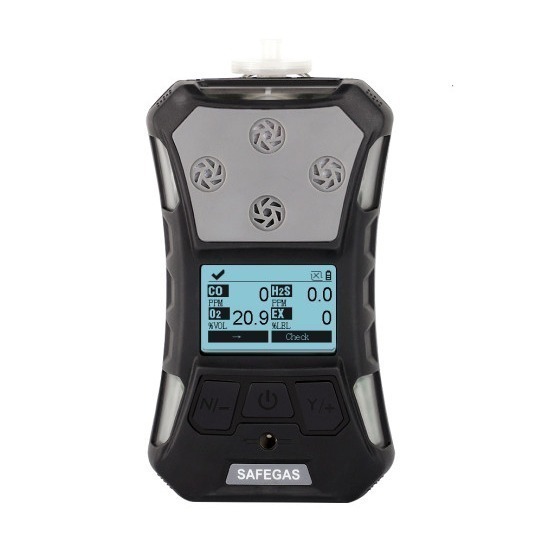

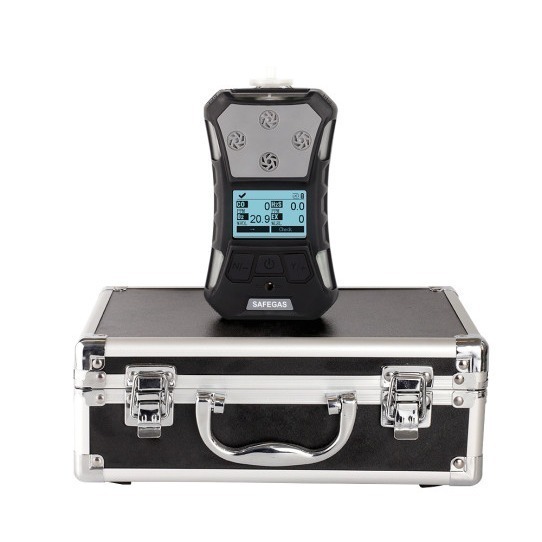

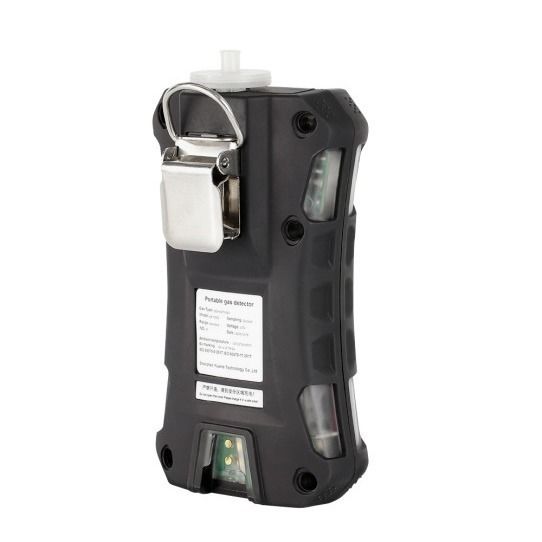

Product Images
