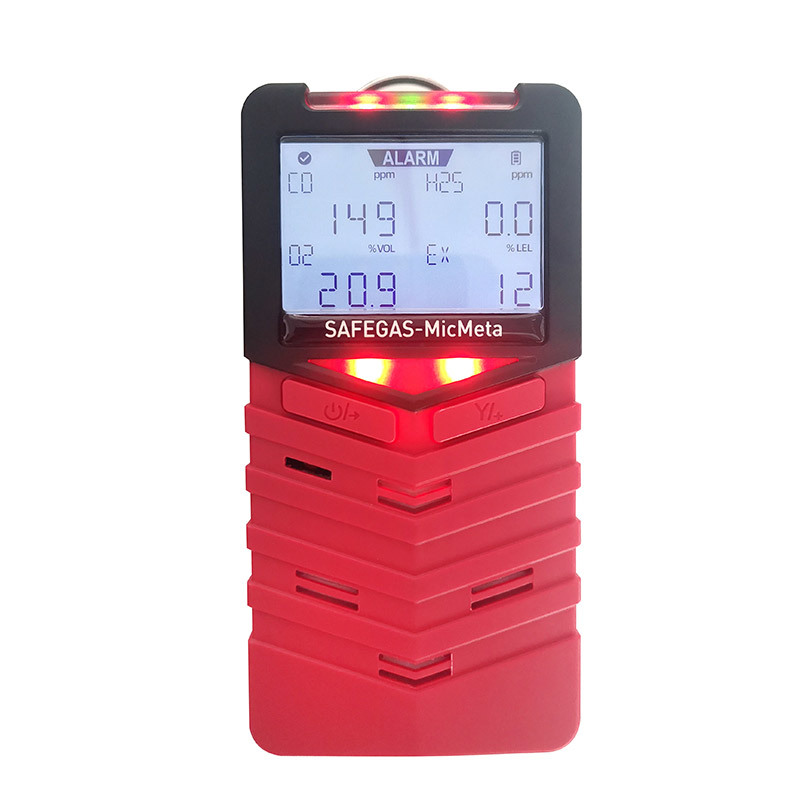

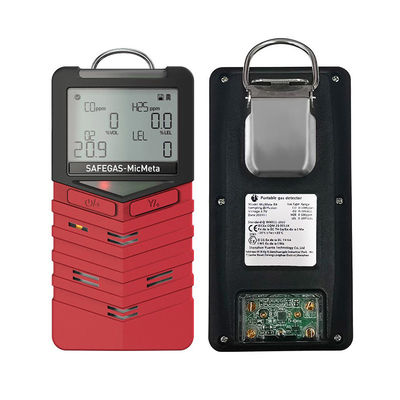

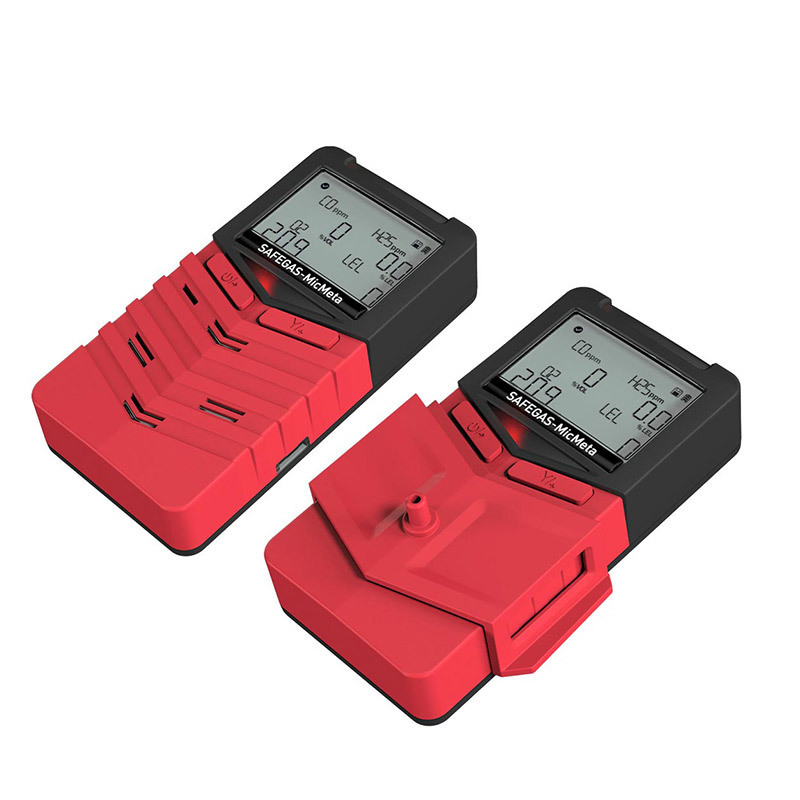

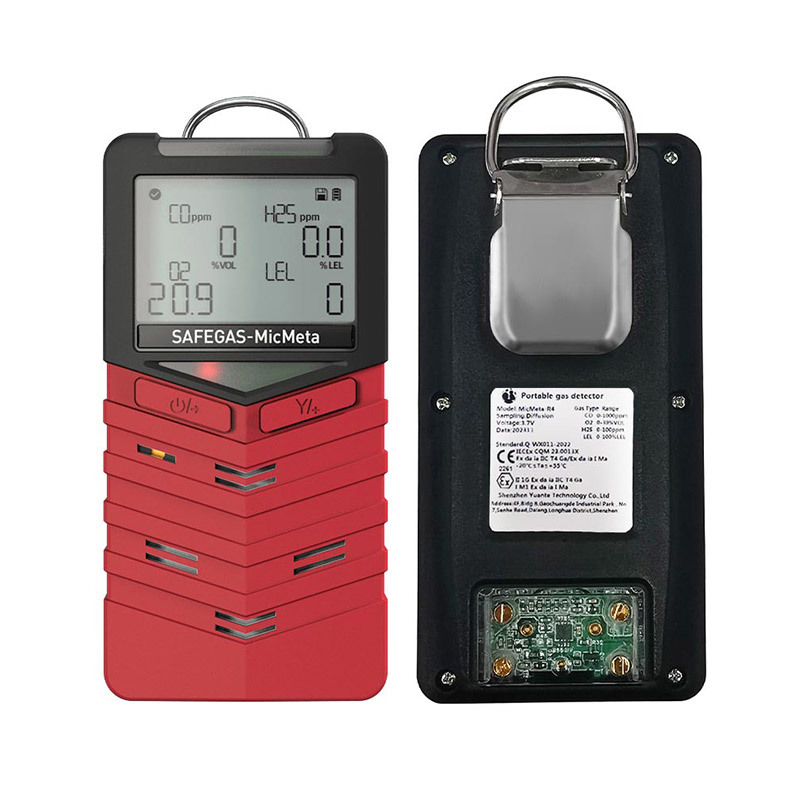

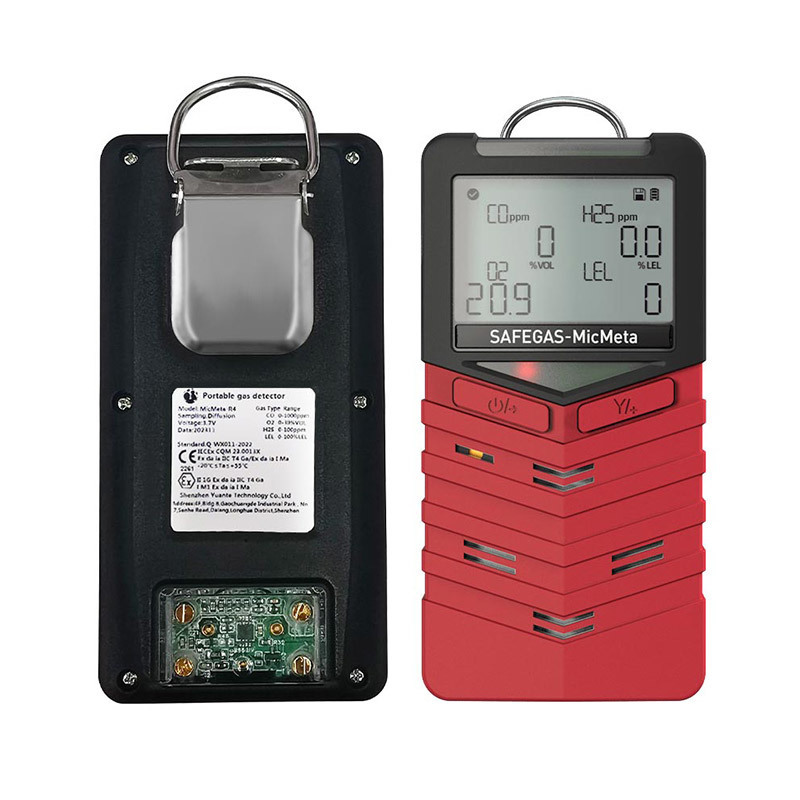

Portable Multi Gas Detector for Industrial Use
Compact, Lightweight Red Design with Advanced Detection Capabilities
The MicMeta is a high-performance portable gas detection alarm that simultaneously detects multiple gases including carbon monoxide, hydrogen sulfide, combustible gas, oxygen and toxic gases. Featuring a personnel fall alarm function and optional wireless transmission via Bluetooth or LoRa, this instrument allows real-time monitoring of gas levels and alarm status by safety personnel.
Key Features
- Detects 1-5 gases simultaneously with customizable measurement ranges
- Triple explosion-proof certified (IECEX, ATEX, China explosion-proof)
- IP66/IP68 protection rating for superior dust and water resistance
- LCD screen with bilingual (Chinese/English) interface and unit switching
- Two-stage sound and light alarm with customizable alarm points
- Wireless LoRa transmission capability (2km range unobstructed)
- Cloud platform for remote data monitoring and management
- Ergonomic design with comfortable back clip for easy carrying
- Drop-resistant construction (withstands falls up to 1.5 meters)
Technical Specifications
| Specification |
Details |
| Sampling Method |
Diffusion |
| Detectable Gases |
CO, H2S, CH4, and others (customizable) |
| Measurement Range |
Customizable |
| Response Time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (sensor dependent) |
| Display |
Segment code LCD with bilingual interface |
| Alarm System |
95dB buzzer, vibration, flashing red bars, screen indication |
| Battery |
3.7V 2300mAh rechargeable lithium |
| Operating Time |
18 hours standby, <6 hours charging |
| Dimensions |
113×60×32mm (L×W×H) |
| Weight |
200g (including battery) |
| Environmental Rating |
-20°C to 55°C, 0-95%RH (non-condensing) |
Industrial Applications
- Chemical Industry
- Oil and Gas Exploration
- Mining Operations
- Wastewater Treatment
- Environmental Monitoring
- Food and Beverage Production
- Healthcare Facilities
- Automotive Industry
- Greenhouse Gas Monitoring
Why Choose Our Gas Detectors?
- 25+ years of R&D experience
- ISO9001 and ISO45001 certified manufacturer
- IECEx, ATEX, and CE certified products
- Fast 5-7 day delivery
- 80,000 unit annual production capacity
- 24/7 professional support
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production and sales of gas detection equipment and systems. With 16 years of industry experience, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, and Municipal Engineering.
Our Product Line
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
Our products hold IECEx, ATEX, CE, and TEST Report certifications, with quality comparable to international brands like Honeywell and MSA, but at more competitive prices.
Frequently Asked Questions
Q: What is a gas detector?
A: A gas detector is an instrument for detecting gas leakage concentrations, available in portable and fixed configurations.
Q: What gases can your detectors measure?
A: Our detectors can measure combustible gases (methane, LPG, acetylene, etc.) and toxic gases (CO, H2S, ammonia, chlorine, etc.).
Q: What does ppm mean in gas detection?
A: ppm (parts per million) indicates gas volume concentration. For example, 30ppm ammonia means 30 volumes of ammonia per million volumes of air.
